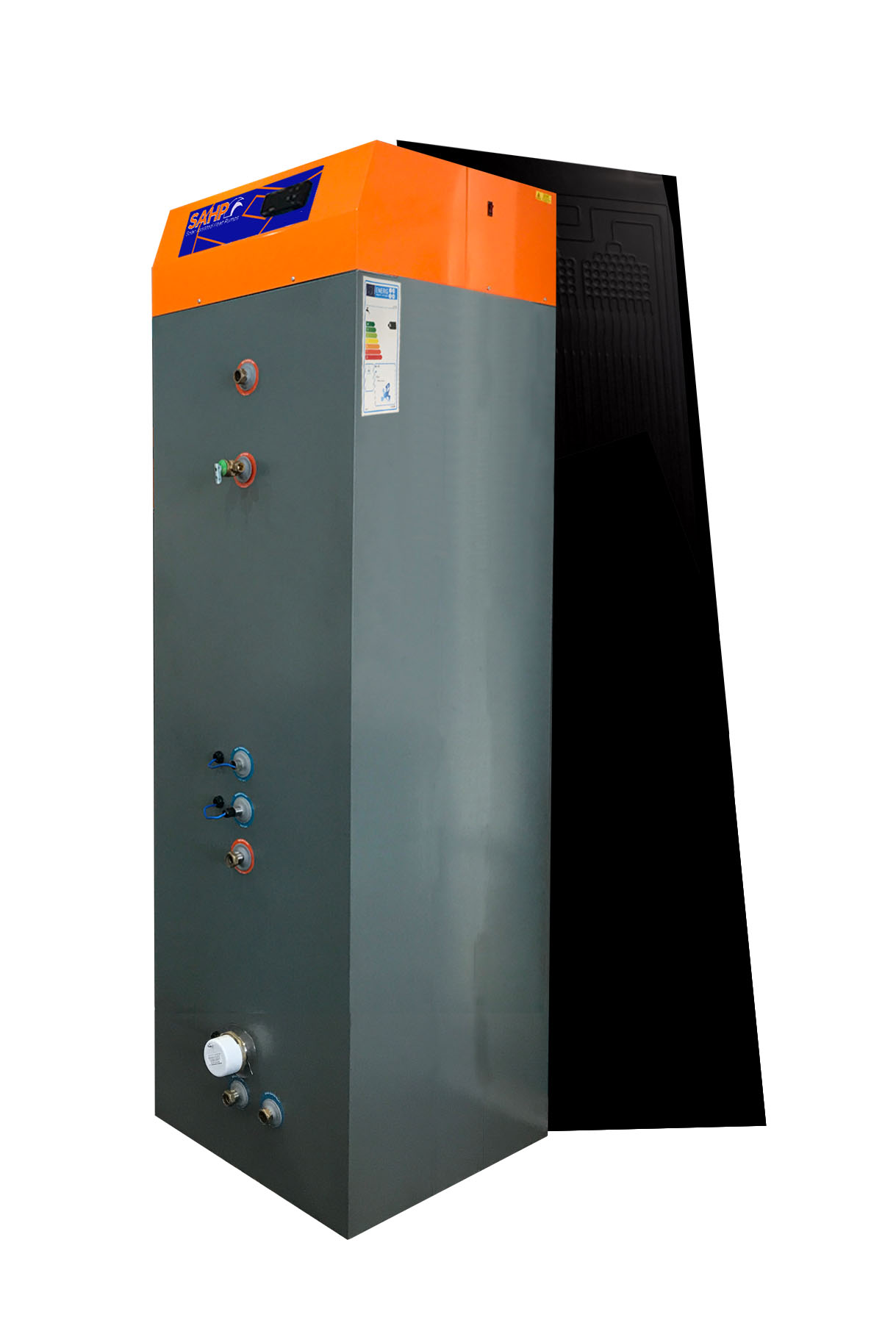

SAHP 200



The SAHP200 is the perfect solution for most homes and smaller commercial units, combining our innovative solar assisted heat pump technology with an ERP-A rated, 200 litre stainless steel cylinder.

The SAHP200 is the all in one solution to your hot water heating requirements. Enabling us to offer a complete range of solar assisted heat pumps, offering either direct, indirect, unvented, vented cylinder, suitable for every installation. This hot water heating and storage system has been tested to UL standards and utilises our already proven technologies.

Relying on the same thermodynamic principles as our existing Solar Assisted Heat Pump range, the SAHP200 transfers this energy to water within its casing, to efficiently and effectively handle the water heating. The SAHP200 is now sold with an improved controller that offers connectivity to existing solar PV inverters.

SAHP 200

Backup heater
  • Factory fitted 1.5 Kw titanium element heater and thermal controls
  • Factory fitted 22 Kw high-performance auxiliary boiler coil
Cold water
Cold water inlet control kit comprising of 0.3 MPa (3 Bar) pressure reducing valve, 0.6 MPa (6 Bar) pressure relief valve, line strainer, non-return valve, a balance cold water connection, nuts and olives. 0.3 MPa (3 Bar) Expansion vessel


Safety (7 Bar)
Factory fitted temperature and pressure relief valve set at 90OC / 0.7 MPa

15/22 mm Tundish Additional thermostat and thermal cut out



Specifications

Height

(inc clearance)
1700 mm

Depth

(inc clearance)
700 mm

Width
600 mm
Weight
106 kg
Avg HP electrical input
500 W
HP thermal power
2000 W

Refrigerant charge
R134a
